Laboratory Upright Freezer ProfiLine Pegasus PLPE 62..

  • Static cooling and manual defrost
  • Microprocessor driven temperature controller with digital display
    and password protection
    - Visual/audible alarm device, mains-independent
    - Alarm warning for excess and sufficient temperature
    - Power failure alarm
    - Probe alarm
    - Door alarm
    - Integrated data logger with USB port
    - No-volt remote alarm contact for connection to a remote alarm system
      on the premises
    - RS-485 port
    - Prepared for GSM alarm
  • Lockable door, door hinges on right, can only be changed in factory
  • External housing made of white, galvanized steel plate
  • Interior made of stainless steel (CNS)
  • 5 compartments with additional inner doors
  • 4 castors, 2 lockable

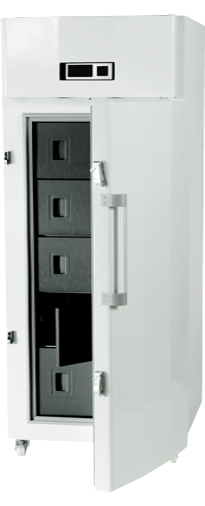

Fig.r.: ProfiLine Pegasus PLPE 4186

Model ProfiLine Pegasus   PLPE 6240 PLPE 6286
Temperature range °C : -20/-40 -40/-86
Content litres (net)to : 556 556
Ext. dimensions (W×D×H) mm : 920 × 885 × 1990 920 × 880 × 1990
Int. dimensions of the 4 upper comp. (W×D×H) mm : 640 × 595 × 255 640 × 595 × 255
Int. dimensions of the lowest comp. (W×D×H) mm : 640 × 595 × 255 640 × 595 × 255
Depth with door opened mm : 1675 1675
Weight kg : 203 203
Mains connection  : 1/N/PE~230 V 50-60 Hz 1/N/PE~230 V 50-60 Hz
Refrigerant   : R404A EP88
Shipping dimensions (W×D×H) mm : 1010 × 955 × 2265* 1010 × 955 × 2265*
Shipping weight kg : 333* 333*
* Shipping in a wooden box



ProfiLine Pegasus + Accessories Cat. No.
ProfiLine Pegasus PLPE 6040 GSPLPE6240
ProfiLIne Pegasus PLPE 6086 GSPLPE6286
ProfiTec temperature monitoring and recording system GPTEC4A
ProfiCaller telephone dialler on request
Pt100 temperature sensor, add. installed for ext. temperature recording ZXX2-020-2L
CO2 back-up system, free-standing ZXX2-092
Facilities for customer connection of CO2 back-up system ZPLPE2-094
MIN/MAX thermometer to be placed in refrigerators or freezers, ZXX2-019-001
measuring range -50/+50 °C, no additional temperature sensor required
MIN/MAX digital thermometer, hand-held unit with digital display as well ZXX2-019-011
as Data-Hold and relative measuring function.
measuring range -200/+1370 °C.
(An additional temperature sensor is required, eg. Cat. No. ZXX2-022-100.)
Temperature sensor for MIN/MAX thermometer ZXX2-019-011, ZXX2-022-100
measuring range -100/+1000 °C, length 2 m, other ranges on request
 Temperature Monitoring
ProfiTec
intelligent temperature monitoring and recording system
• For up to 4 refrigerators
   and/or freezers
• Readings are stored over
   a period up to 781 days
• Warning for excess and
   insufficient temperature
• Includes no-volt remote
   alarm contact
• The measuring protocol
   can be fed to PC via
   RS-232 port

Download Data sheet

PDF
