Path :  Laboratory Upright Freezers / ProfiLine Pegasus PLPE 72..
⇐ prev.: ProfiLine Pegasus ⇑ Overview: Laboratory Upright Freezers

Laboratory Upright Freezer ProfiLine Pegasus PLPE 72..

  • Static cooling and manual defrost
  • 2 separate, redundant operating cooling circuits
    for maximum safety (PLPE 7286 only)
  • Microprocessor driven temperature controller with digital display
    and password protection
    - Visual/audible alarm device, mains-independent
    - Alarm warning for excess and sufficient temperature
    - Power failure alarm
    - Probe alarm
    - Door alarm
    - Integrated data logger with USB port
    - No-volt remote alarm contact for connection to a remote alarm system
      on the premises
    - RS-485 port
    - Prepared for GSM alarm
  • Lockable door, door hinges on right, can only be changed in factory
  • External housing made of white, galvanized steel plate
  • Interior made of stainless steel (CNS)
  • 5 compartments with additional inner doors
  • 4 castors, 2 lockable

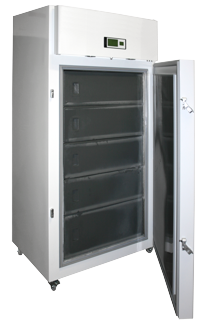

Fig.r.: ProfiLine Pegasus PLPE 7286

Model ProfiLine Pegasus   PLPE 7240 PLPE 7286
Temperature range °C : -40/-86 -40/-86
Content litres (net)to : 646 646
Ext. dimensions (W×D×H) mm : 1030 × 880 × 1990 1030 × 880 × 1990
Int. dimensions of the 4 upper comp. (W×D×H) mm : 750 × 595 × 243 750 × 595 × 243
Int. dimensions of the lowest comp. (W×D×H) mm : 750 × 595 × 243 750 × 595 × 243
Depth with door opened mm : 1790 1790
Weight kg : 242 242
Mains connection  : 1/N/PE~230 V 50-60 Hz 1/N/PE~230 V 50-60 Hz
Shipping dimensions (W×D×H) mm : 1080 × 940 × 2275 1080 × 940 × 2275
Shipping weight kg : 388 388
Refrigerant CFC- and HCFC-free   : EP88 EP88
* Shipping in a wooden crate
** Shipping in a wooden box



ProfiLine Pegasus + Accessories Cat. No.
ProfiLine Pegasus PLPE 7240 GSPLPE7240
ProfiLIne Pegasus PLPE 7286 GSPLPE7286
ProfiTec temperature monitoring and recording system GPTEC4A
ProfiCaller telephone dialler on request
Pt100 temperature sensor, add. installed for ext. temperature recording ZXX2-020-2L
CO2 back-up system, free-standing ZXX2-092
Facilities for customer connection of CO2 back-up system ZPLPE2-094
MIN/MAX thermometer to be placed in refrigerators or freezers, ZXX2-019-001
measuring range -50/+50 °C, no additional temperature sensor required
MIN/MAX digital thermometer, hand-held unit with digital display as well ZXX2-019-011
as Data-Hold and relative measuring function.
measuring range -200/+1370 °C.
(An additional temperature sensor is required, eg. Cat. No. ZXX2-022-100.)
Temperature sensor for MIN/MAX thermometer ZXX2-019-011, ZXX2-022-100
measuring range -100/+1000 °C, length 2 m, other ranges on request
 Temperature Monitoring
ProfiTec
intelligent temperature monitoring and recording system
• For up to 4 refrigerators
   and/or freezers
• Readings are stored over
   a period up to 781 days
• Warning for excess and
   insufficient temperature
• Includes no-volt remote
   alarm contact
• The measuring protocol
   can be fed to PC via
   RS-232 port

Download Data sheet

PDF
