Path :  Laboratory Refrigerator / LabStar Sirius LSSI 3505
  ⇑ Overview: Laboratory Refrigerator LabStar Sirius: next ⇒

Laboratory Refrigerator LabStar Sirius LSSI 35..

  • Forced air circulation with automatic defrost and condensate evaporation or
    static cooling and manual defrost
  • Cooling unit top
  • Operating panel with main switch
    - Electronic control with digital display
    - Visual/audible alarm device
    - Alarm warning for excess and insufficient temperature
    - Door alarm
    - No-volt remote alarm contact for connection to a remote alarm system
    - RS-485 port
  • Self-closing and lockable door
  • Door hinges on right, changeable
  • Door seal changeable
  • 3 adjustable grid inserts in tilt-resistant guide rails
  • Interior made of stainless steel (CNS)
  • 4 castors, 2 lockable

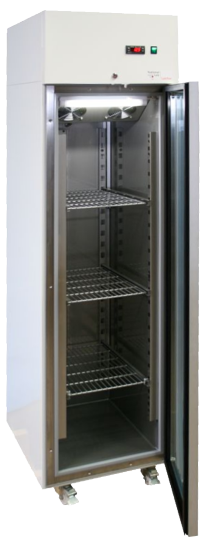

Fig.r.: LabStar Sirius LSSI 3505GEWU

Model LabStar Sirius   LSSI 3505 LSSI 3505 LSSI 3505 LSSI 3505
    Forced air circulation Forced air circulation Static cooling Static cooling
Version   EWU/EEU
Solid door
GEWU/GEEU
Glass door
EWN/EEN
Solid door
GEWN/GEEN
Glass door
Temperature range °C : +1/+10 +1/+10 +1/+10 +1/+10
Content litres (gross): 346 346 346 346
Content litres (net) : 218 218 227 227
Ext. dimensions (W×D×H) mm : 520 × 700 × 1997 520 × 700 × 1997 520 × 700 × 1997 520 × 700 × 1997
Int. dimensions (W×D×H) mm : 400 × 575 × 1505 400 × 575 × 1505 400 × 575 × 1505 400 × 575 × 1505
Depth with door opened mm : 1182 1182 1182 1182
Weight kg : 98 98 98 98
Mains connection  : 1/N/PE~230 V 50 Hz 1/N/PE~230 V 50 Hz 1/N/PE~230 V 50 Hz 1/N/PE~230 V 50 Hz
Grid inserts   : 3 3 3 3
Shipping dimensions (W×D×H) mm : 650 × 780 × 2200 650 × 780 × 2200 610 × 840 × 2200 610 × 840 × 2200
Shipping weight kg : 112 112 112 112
Refrigerant CFC- and HCFC-free   : R134a R134a R134a R134a



LabStar Sirius + Accessories Outside / Inside Cat. No.
LabStar Sirius LSSI 3505EWU white / CNS GSLSSI3505EWU
LabStar Sirius LSSI 3505EEU CNS / CNS GSLSSI3505EEU
LabStar Sirius LSSI 3505GEWU white, glass door / CNS GSLSSI3505GEWU
LabStar Sirius LSSI 3505GEEU CNS, glass door / CNS GSLSSI3505GEEU
LabStar Sirius LSSI 3505EWN white / CNS GSLSSI3505EWN
LabStar Sirius LSSI 3505EEN CNS / CNS GSLSSI3505EEN
LabStar Sirius LSSI 3505GEWN white, glass door / CNS GSLSSI3505GEWN
LabStar Sirius LSSI 3505GEEN CNS, glass door / CNS GSLSSI3505GEEN



Additional options and accessories on  ⇒  request



LabStar Sirius + Accessories Cat. No.
ProfiTec temperature monitoring and recording system GPTEC4A
ProfiCaller telephone dialler on request
Pt100 temperature sensor, add. installed for ext. temperature recording ZXX2-020-2L
Grid inserts, 330 × 545 mm (WxD) ZLSSI4-330x545
Guide rails for grid inserts, 1 pair ZLSSI4-023
Drawer with telescopic slide-out for LSSI 35xx, made of CNS ZLSSI4-003
Interior socket, tropical design ZLSSI1-001-01
Feet instead of castors made of CNS, 50 mm height adjustable ZLSSI5-021-125
Duct to storage compartment 26 mm in diameter ZLSSI1-002-26
MIN/MAX thermometer to be placed in refrigerators or freezers, ZXX2-019-001
Measuring range -50/+50 °C, no add. temperature sensor required
MIN/MAX digital thermometer, hand-held unit with digital display as well as ZXX2-019-011
data-hold and relative measuring function, measuring range -200/+1370 °C
(An additional temperature sensor is required, eg. Cat. No. ZXX2-022-100.)
Temperature sensor for MIN/MAX thermometer ZXX2-019-011, ZXX2-022-100
Measuring range -100/+1000 °C, length 2 m, other ranges on request

Download Data sheet

PDF

 Inventory Systems
Stainless steel drawers,
freezer cassettes and grid
inserts enable specimens to be stored and retrieved in a clear and orderly manner.
Optimum use is made of
the storage capacity.





  ⇑ Overview: Laboratory Refrigerator LabStar Sirius: next ⇒
