Path :  Laboratory Upright Freezers / LabStar LSSA
  ⇑ Overview: Laboratory Upright Freezers

Laboratory Upright Freezer LabStar Sanguis LSSA

  • Static cooling and manual defrost
  • Micro-processor driven temperature controller
    - Visual/audible alarm device
    - Alarm warning for excess and insufficient temperature
    - Probe failure alarm
    - Door alarm
    - Integrated data logger
    - USB port for data download
    - No-volt remote alarm contact for
    connection to a remote alarm system
  • External housing made of white
    corrosion-resistant, galvanized steel
    plate with PVC finish
  • Self-closing and lockable door
  • Door hinges on right, changeable
  • Door seal changeable
  • 2 drawers with telescopic slide-out
  • Interior made of stainless steel CNS
  • 4 castors, 2 height adjustable feet at rear

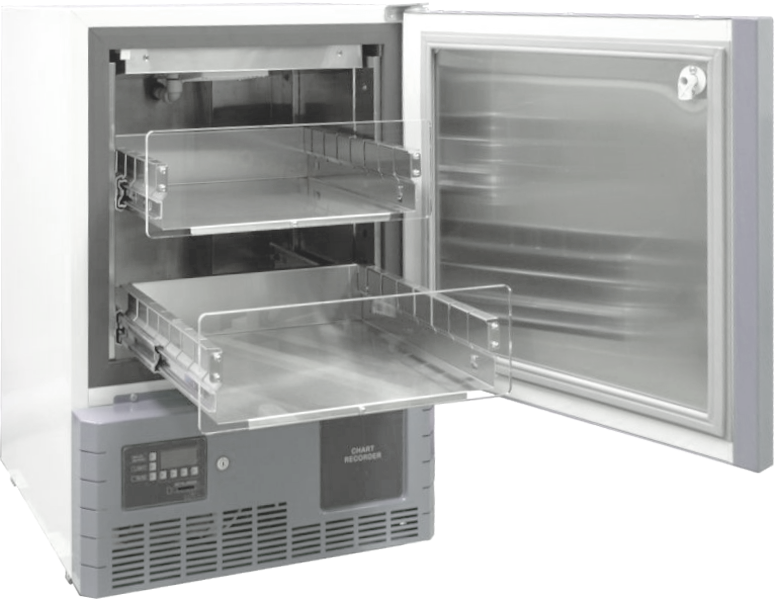

Fig.r.: LabStar Sanguis LSSA1130EWN
Modell LabStar Sanguis   LSSA 1130EWN
Temperature range °C : -10/-30
    Static cooling
Content litres (gross) litres (gross): 100
Ext. dimensions (WxDxH) mm : 600 × 600 × 850
Int. dimensions (WxDxH) mm : 475 × 440 × 460
Depth with door opened mm : 1135
Drawers   : 2
Weight kgs kg : 81
Mains connection  : 1/N/PE~230 V 50 Hz
Shipping dimensions (WxDxH) mm : 680 × 680 × 1050
Shipping weight kgs kg : 92
Refrigerant CFC- and HCFC-free   : R290


LabStar Sanguis + Accessories Outside / Inside Cat. No.
LabStar Sanguis LSSA1130EWN white / CNS GSLSSA1130EWN


Additional options and accessories on  ⇒  request


LabStar Sanguis + Accessories: Outside / Inside Cat. No.
LabStar Sanguis LSSA1130EWN white / CNS GSLSSA1130EWN
ProfiTec Temperature Monitoring and
Recording System (see separate data sheet).
ProfiCaller telephone dialler. on request
Pt-100 temperature sensor, add. installed for ext. temperature recording. ZXX2-020-2L
Circular chart recorder for 7 days. Mains-independent. on request
7-day circular charts. Pck. of 100 pieces. on request
Battery-BackUp-System for full retention of all controller features on request
incl. alarm in the event of power failure (for up to 48 hours).
Ex-Version „Interior free of ignition sources“.
Internal dividers for drawer. 1 set consisting of 3 dividers. ZLSSA4-010
MIN/MAX thermometer to be placed in refrigerators or freezers. ZXX2-019-001
Measuring range -50/+50 °C, an add. temperature sensor is not required.
MIN/MAX digital thermometer. Hand-held unit with digital display as well as
data-hold and relative measuring function. Measuring range -200/+1370 °C.
An add. temperature sensor is required, eg. Cat.-No. ZXX2-022-100.
Temperature sensor for MIN/MAX thermometer ZXX2-019-011.
Measuring range -100/+1000 °C. Length 2 m. Other ranges on request.
USB data logger to be placed in refrigerators or freezers.
 Temperature Monitoring
intelligent temperature monitoring and recording system
• For up to 4 refrigerators
   and/or freezers
• Readings are stored over
   a period up to 781 days
• Warning for excess and
   insufficient temperature
• Includes no-volt remote
   alarm contact
• The measuring protocol
   can be fed to PC via
   RS-232 port

Download Data sheet


 Inventory Systems
Stainless steel drawers,
freezer cassettes and grid
inserts enable specimens to be stored and retrieved in a clear and orderly manner.
Optimum use is made of
the storage capacity.
Please ask
for a personal
fitting option.
 MIN/MAX Thermometer
MIN/MAX digital thermometer
with add. temperature sensor
Art.Nr. ZXX2-019-011,
Art.Nr. ZXX2-022-100
